Tempered Glass Door Patch Fitting

Patch Fitting Specification:


 Material: Aluminum, Stainless Steel.
 Max door panel:
 thickness: 3/8"~1/2"  (10~12mm)

 height: 102" (2.59M)

 width:  42"  (1.07M)

 weight: 194 Lb  (88Kg)

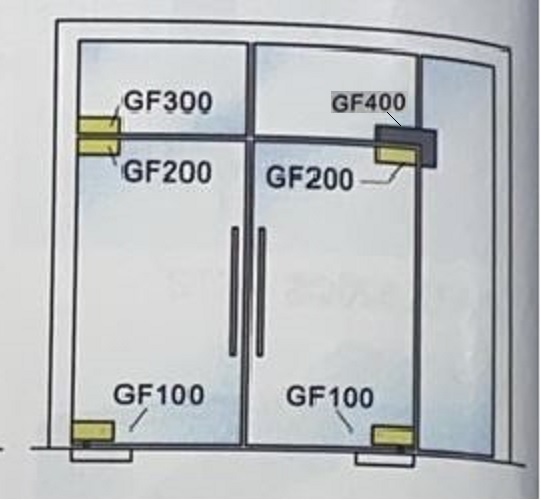

Fitting items	Prepare Cutting	Fitting Location



  #100 bottom clamping

  #200 upper clamping

  #300 top clamping

  #400 corner clamping
